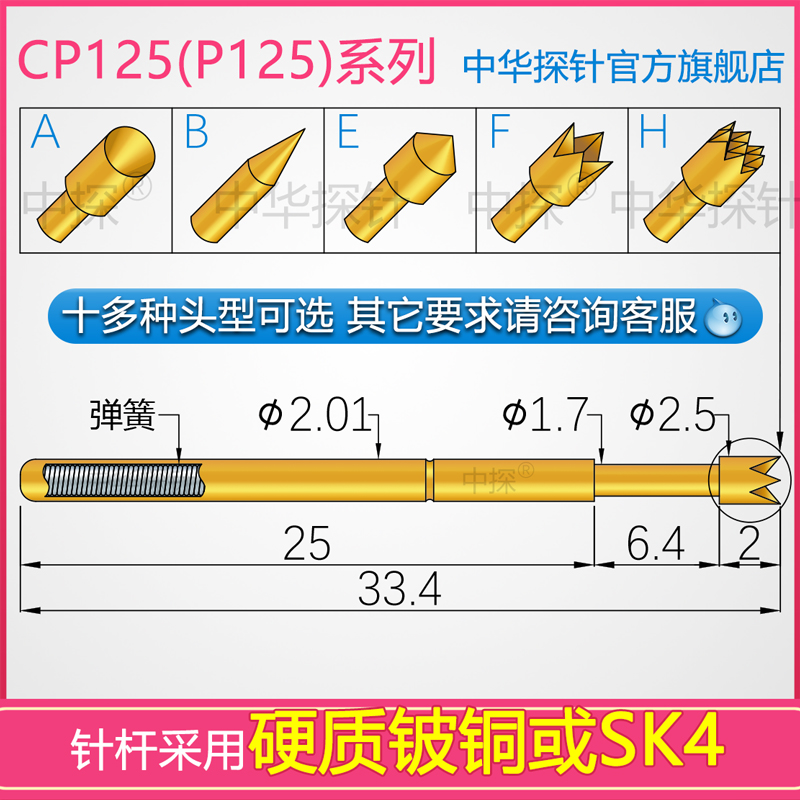

ZTT CP-125 P-125 probe pin shaft is hard nickel or hard gold plated with hard phosphorous or beryllium copper

ZTT CP-125 P-125 probe pin shaft is hard nickel or hard gold plated with hard phosphorous or beryllium copperZoom

Additional

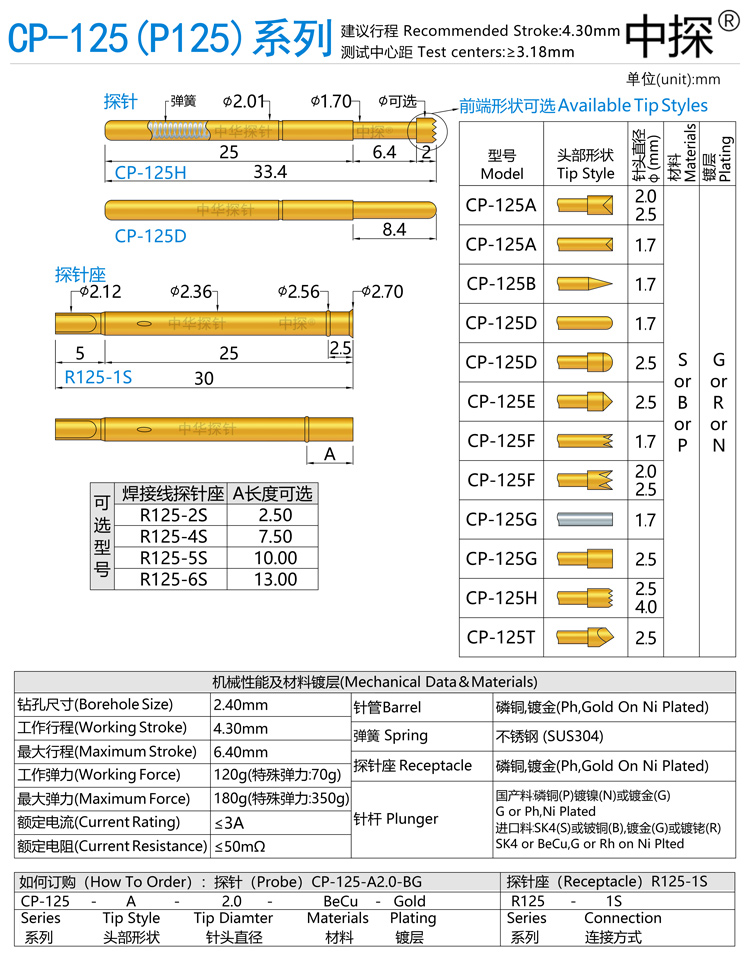

modelCP-125
BrandProspecting
PlaceMainland China
Color ClassificationOrder quantity from each model is 50, integer multiples are 1, unit price excluding tax and shipping costs Nickel-plated needles for phosphor copper needles Please note Model Phosphor copper needles for gold-plated needles Please note Model Hard beryllium copper or S
Impedance 50mΩ
minimum needle spacing318mm
rated working stroke43mm
spring life300,000 times
Spring MaterialStainless steel

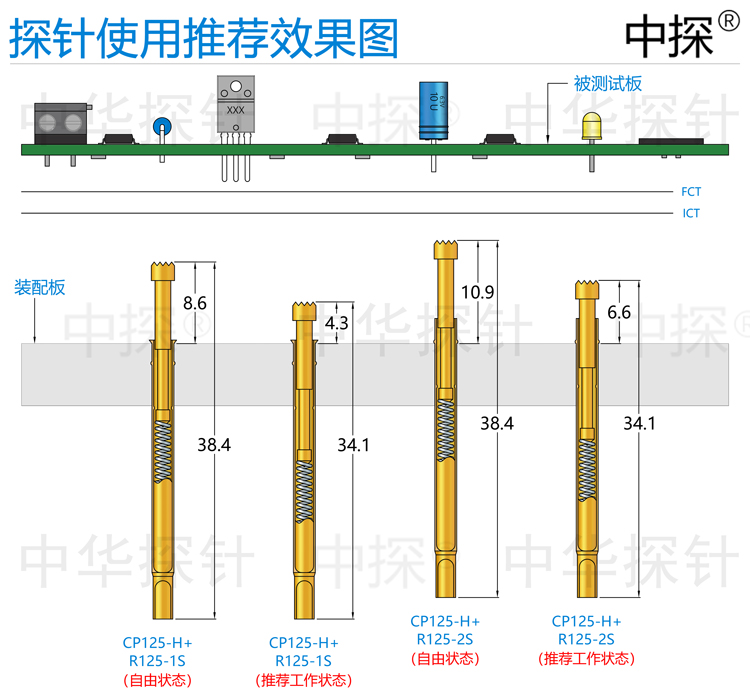

probe typeICT FCT probe
operating ambient temperature80°C
Needle Tube MaterialPhosphor copper-plated gold
Maximum Work Trips63mm
Needle Tip MaterialPhosphor copper plated nickel or gold plated beryllium copper or SK4 gold plated
Rated current3A

Details

Wholesale

Please contact our support team at service@chinahao.com
